tunnel sterilization

■ Automatic air intake, adjustment of air volume, temperature, moisture and air balance
■ Advanced sterilization recipe, depyrogenation controlling
■ Night mode for saving of start-up time
■ Automatic partition gate in option
■ FH value ≥1500, temperature deviation≤±5℃
■ Multi-temp. monitoring, safety temperature supervising, working data printing in place
■ Validation port for DOP test
■ Multi functions for optimization of process

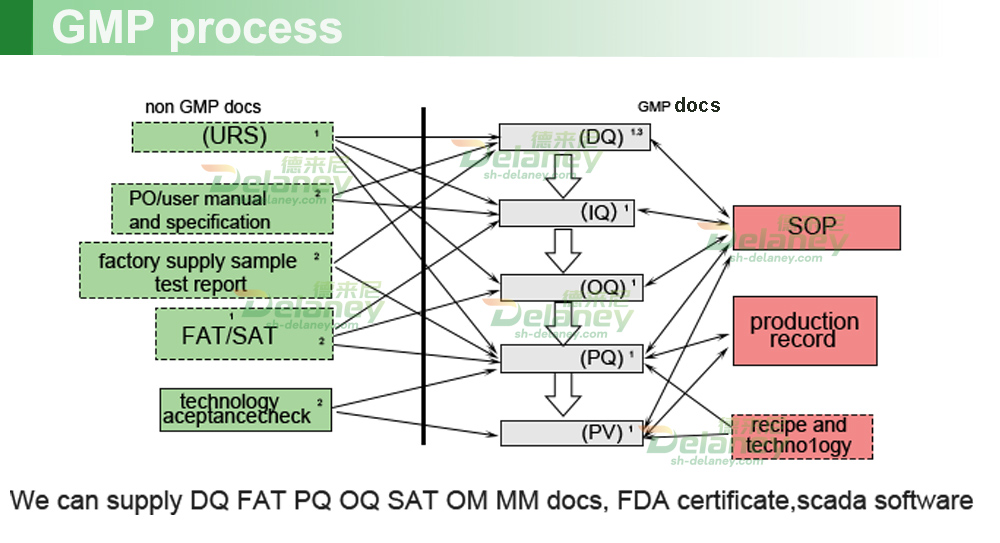

■ Qualified documentation

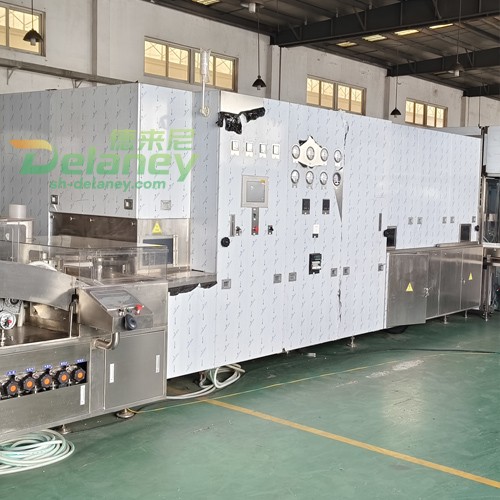

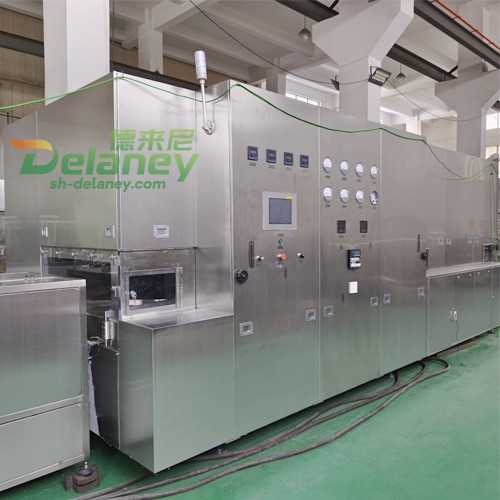

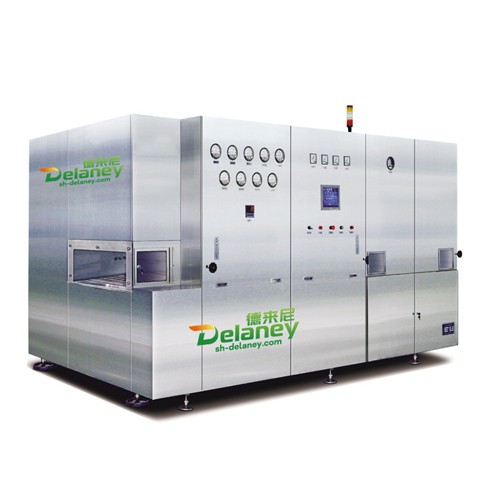

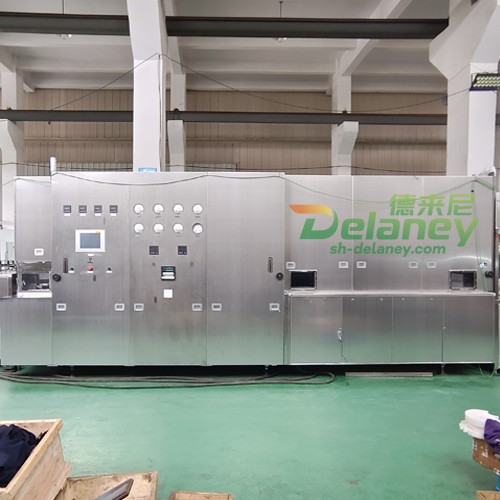

Aseptic vertical tunnel sterilization for pharmaceutical industry

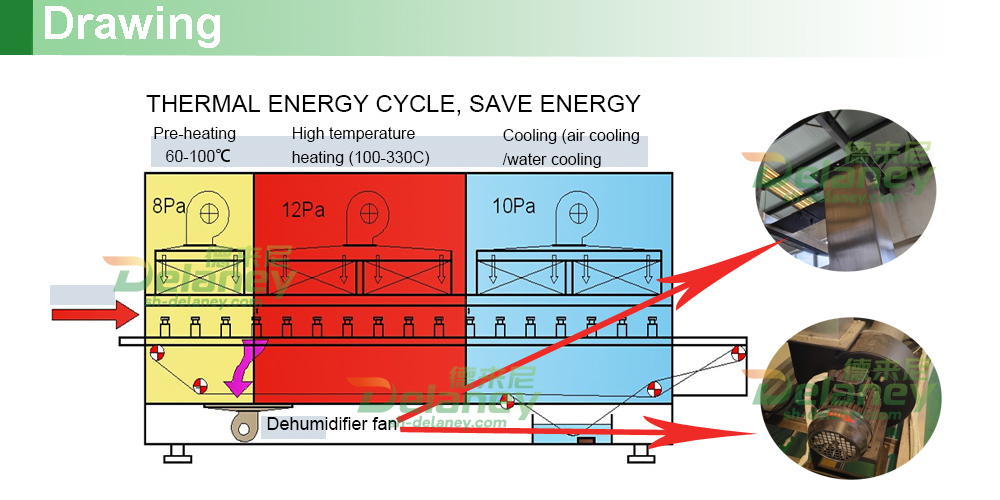

This equipment is applied for drying, sterilizing and depyrogenation of washed vials, ampoules and the other containers, the tunnel is divided into three processing zones which are of preheating zone, heating zone and cooling zone. According to the requirement the air cooling and water cooling as be in options. All the fabric material in line with GMP guideline

Power	3 P 380V/50HZ
Electric load	76kw
Air intake volume at preheating zone	500m³/hour in Max.
Air intake volume at heating zone	300m³/hour
Air discharge volume at heating zone	300m³/hour
Air discharge volume at cooling zone	500 m³/hour by water cooling 3000 m³/hour by air cooling
Cooling water consumption	2-3 m³/hour
Discharge temperature	0-35℃
Machine dimension	3400 1120 2200mm
Operation height	900mm
Machine weight	3600kg
