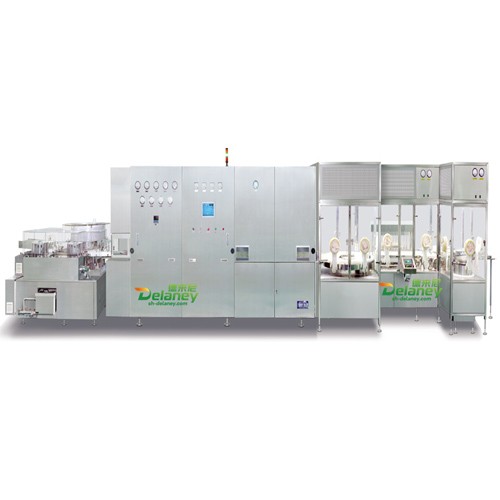

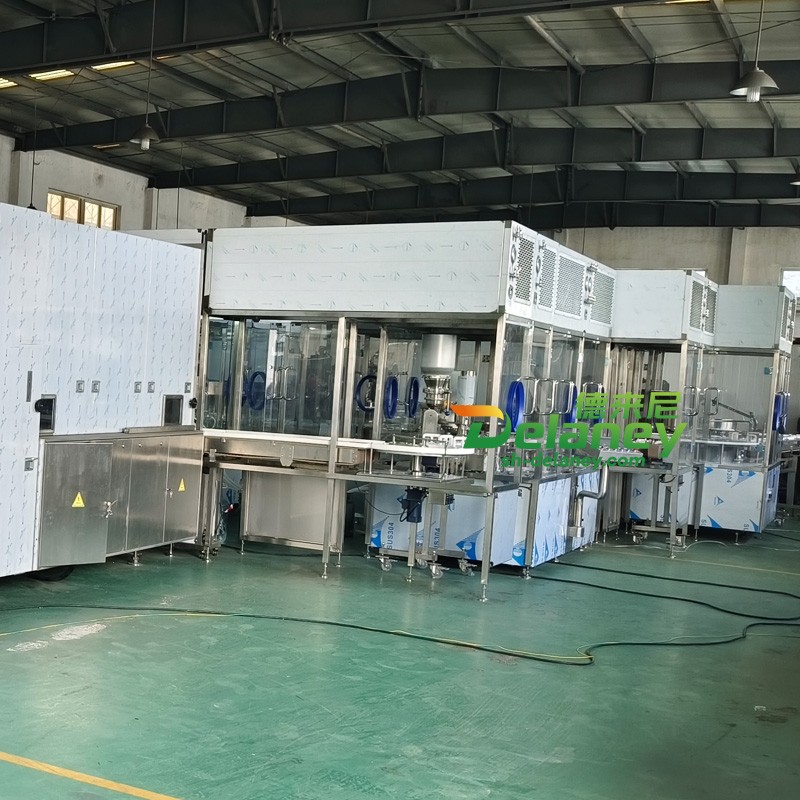

high speed injection vial production line

Factory direct manufacture high speed injection vial production line, 22000bph,aseptic filling,high speed

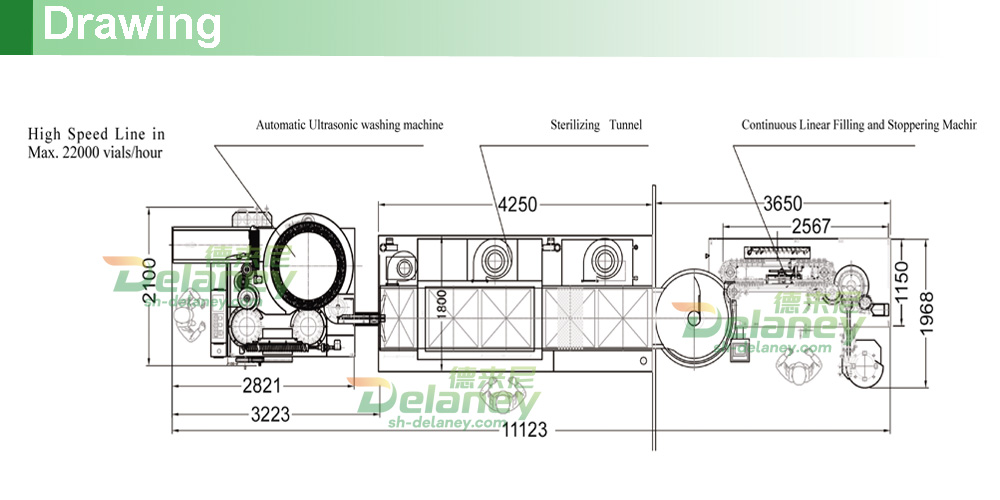

The machine key parts purchased from well-know manufactures, adopt latest control system. stable running of the line, easier operation, low noise generation, no pollution to production environment, the whole line be in compliance with GMP guideline. RABS system as be in optional. The container sizes applicable range from 1ml-100ml, the production speed of the

whole line up to max.22000vials/hour.

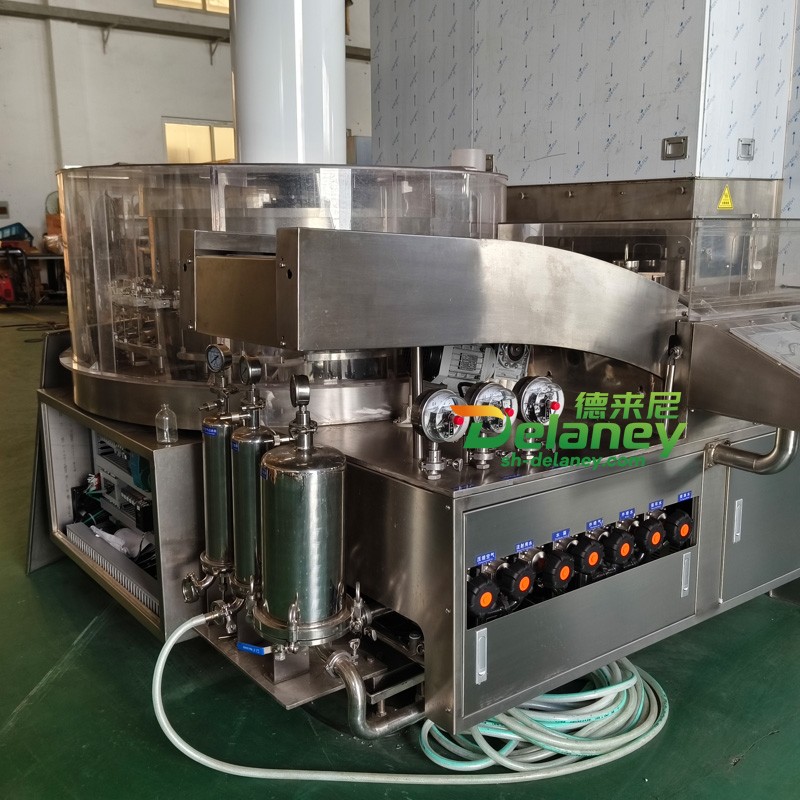

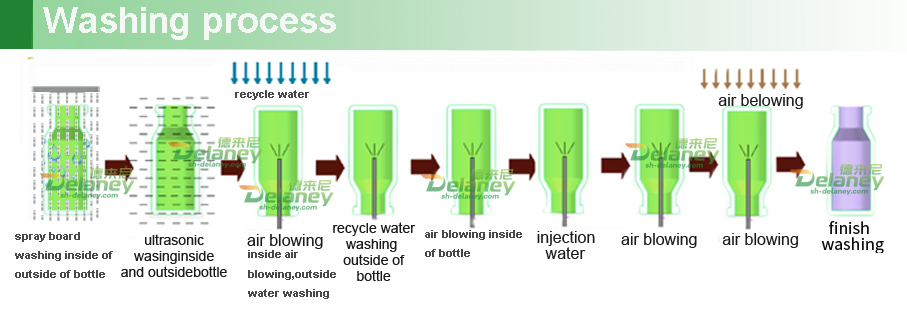

Washing machine

washing machine consist of infeeding section, ultrasonic treatment section and final washing section, the containers are going through those sections for completion of the whole washing processing by the prewashing and final washing steps, the washing quality of the containers can be validated.

Tunnel sterilization

This equipment is applied for drying, sterilizing and depyrogenation of washed vials, ampoules and the other containers, the tunnel is divided into three processing zones which are of preheating zone, heating zone and cooling zone. According to the requirement the air cooling and water cooling as be in options. All the fabric material in line with GMP guideline.

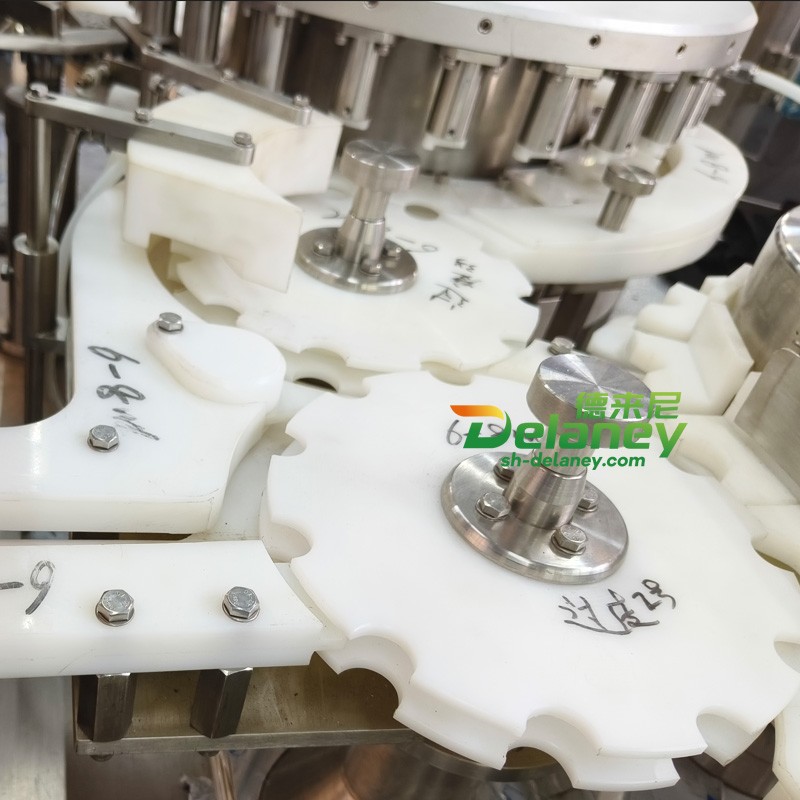

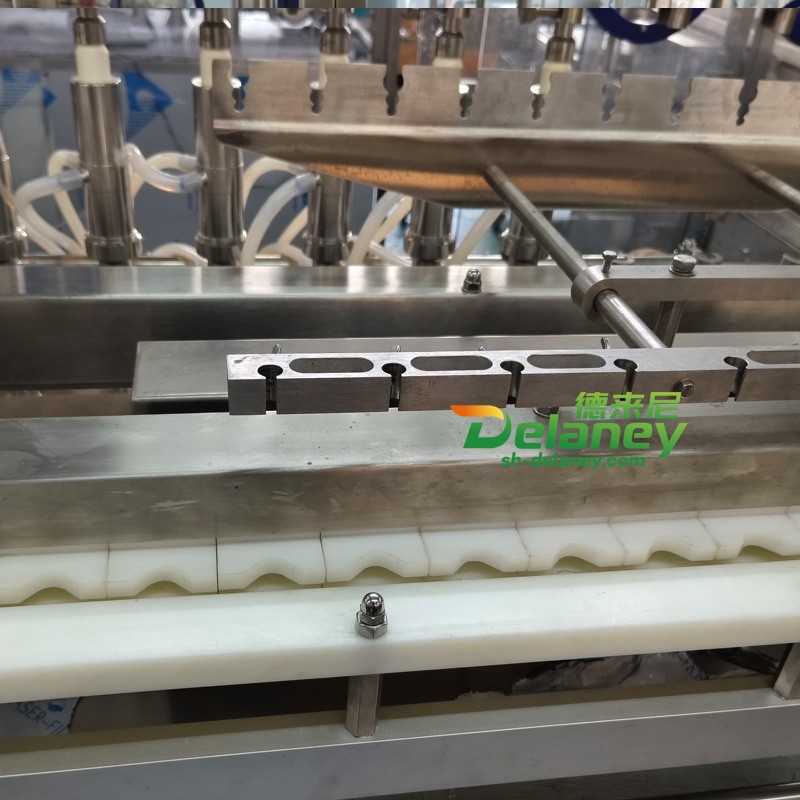

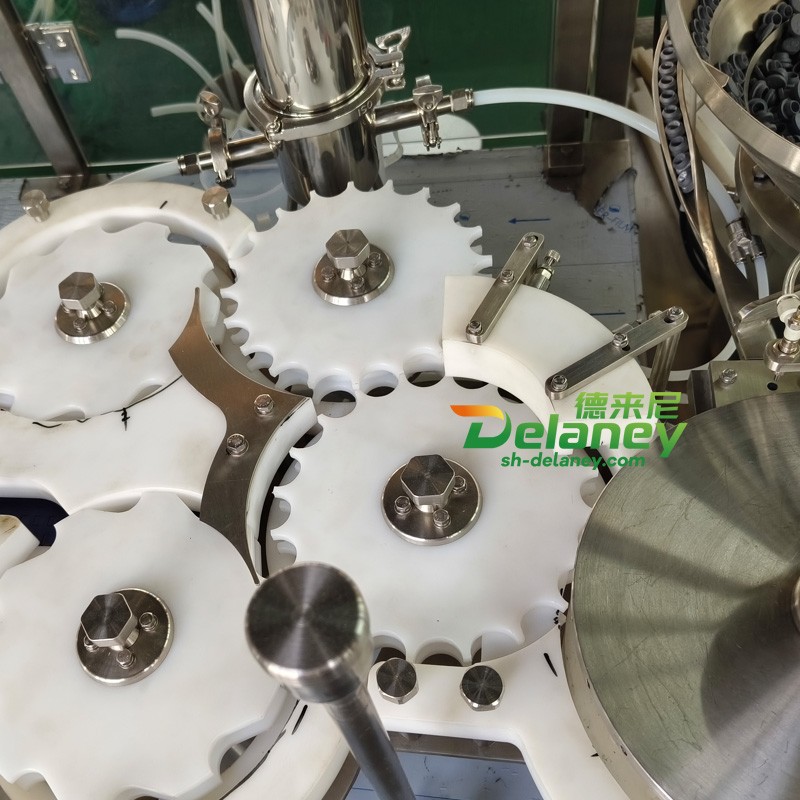

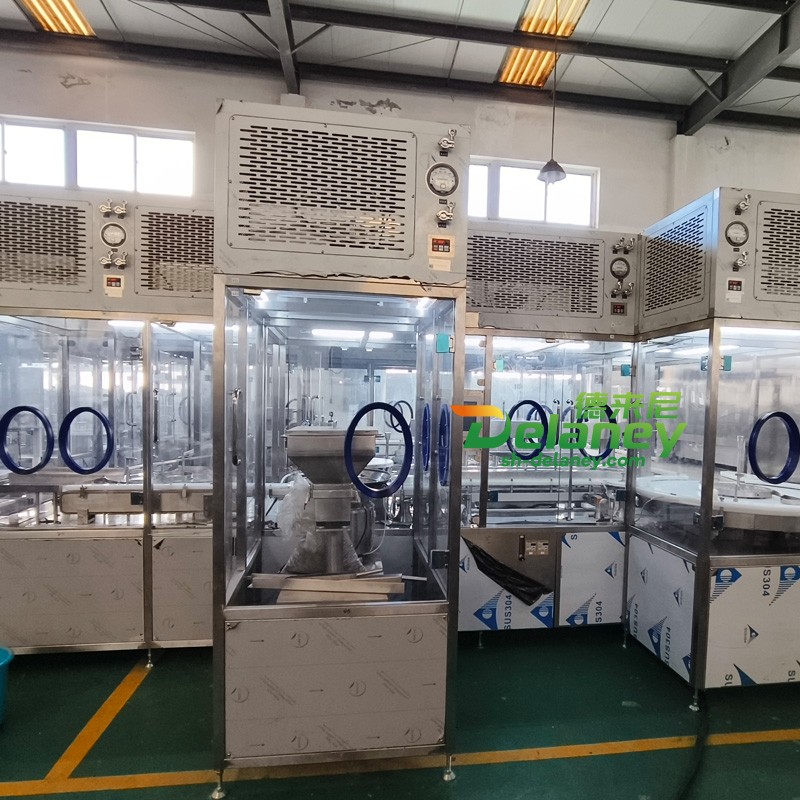

Filling and capping machine

The machine is a continuous linear multi-function filling device for handling of the aseptic injectables liquid under cleaning environment with a “V” shape conveyor vial transferring from the infeeding to the outfeeding. This conveyor belt with no sizepart change for handling of vial sizes from 1ml to 100ml.
