pharmaceutical powder filling machine

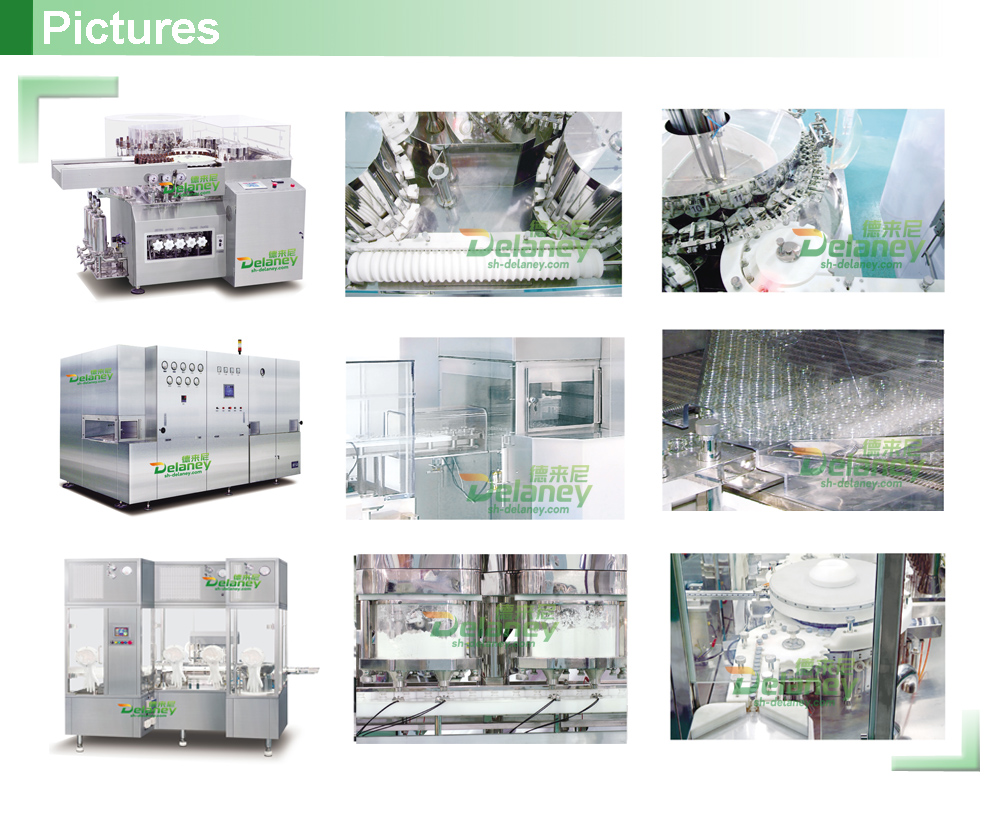

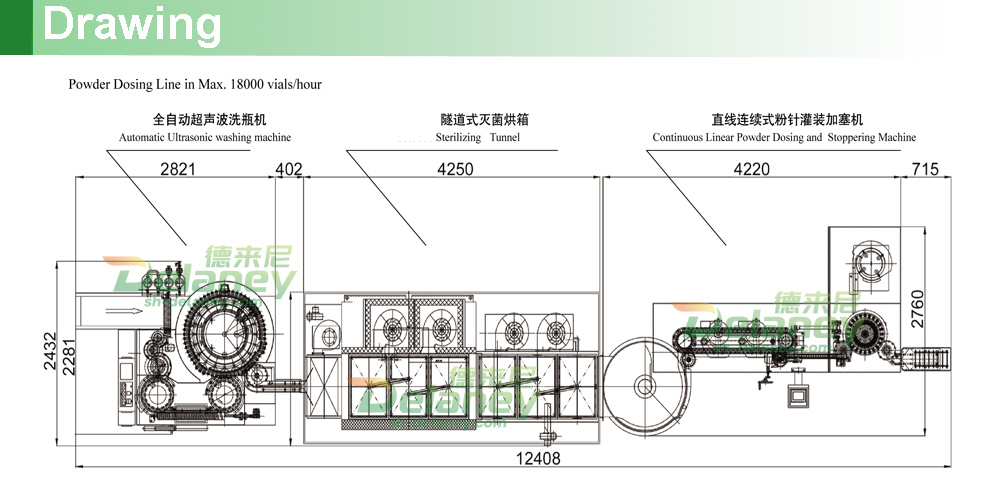

High speed aseptic pharmaceutical powder filling machine

latest control system. stable running of the line, easier operation,low noise generation, no pollution to production environment, the

whole line be in compliance with GMP guideline. Powder dosing by augers, RABS system as be in optional. The container sizes applicable range from 2ml-50ml, the production speed of the whole line up to max.18000vials/hour.

Washing machine

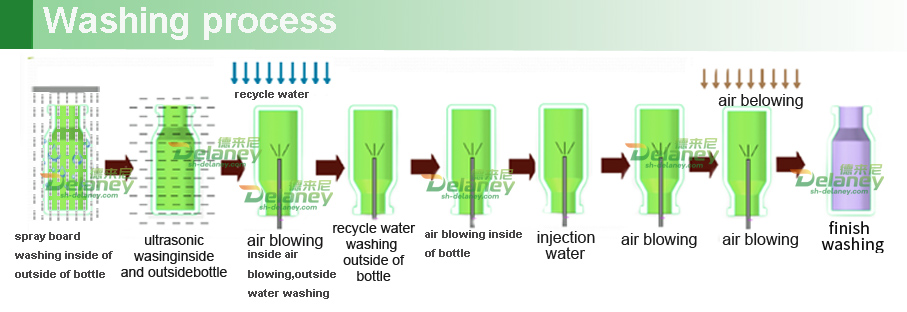

washing machine consist of infeeding section, ultrasonic treatment section and final washing section, the containers are going through those sections for completion of the whole washing processing by the prewashing and final washing steps, the washing quality of the containers can be validated.

■ Wide applicable container size

■ Ultrasonic treatment in the same time

■ High washing efficiency

■ Machine hood lift-up automatically

■ Glass debris discharge device

■ Media insufficient alarm function

■ Container contact material in line with FDA guideline

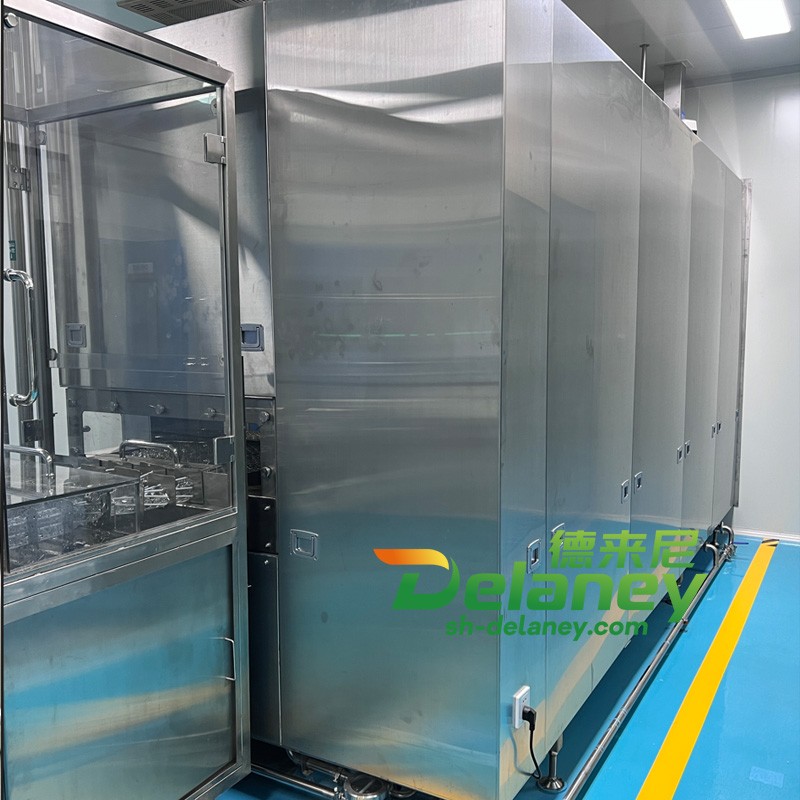

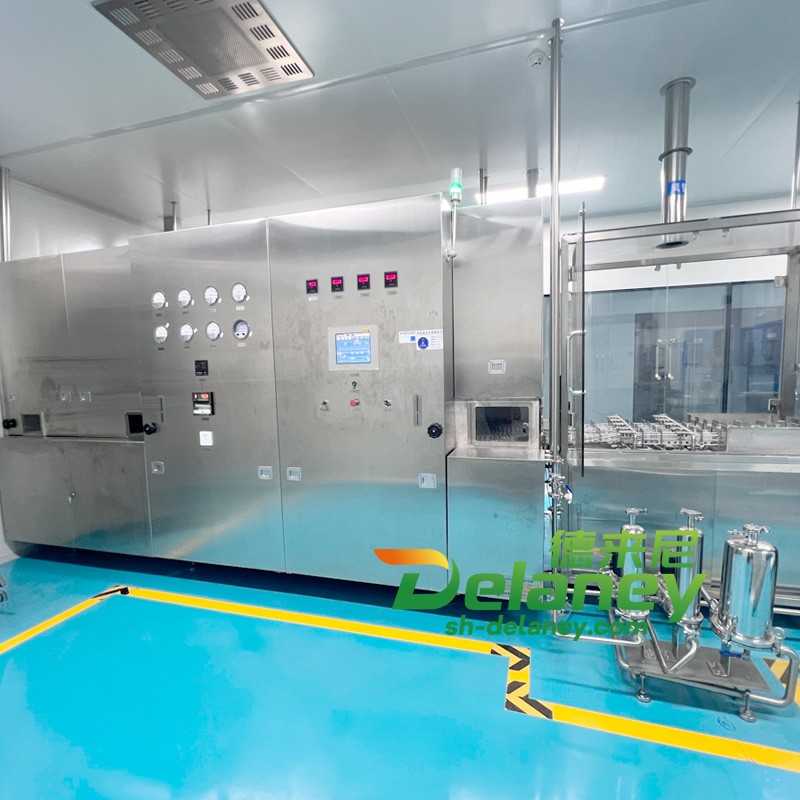

Tunnel sterilization

This equipment is applied for drying, sterilizing and depyrogenation of washed vials, ampoules and the other containers, the tunnel is divided into three processing zones which are of preheating zone, heating zone and cooling zone. According to the requirement the air cooling and water cooling as be in options. All the fabric material in line with GMP guideline.

■Automatic air intake, adjustment of air volume, temperature, moisture and air balance

■ Advanced sterilization recipe, depyrogenation controlling

■ Night mode for saving of start-up time

■ Automatic partition gate in option

■ FH value ≥1500, temperature deviation≤±5℃

■ Multi-temp. monitoring, safety temperature supervising, working data printing in place

■ Validation port for DOP test

■ Multi functions for optimization of process

■ Qualified documentation

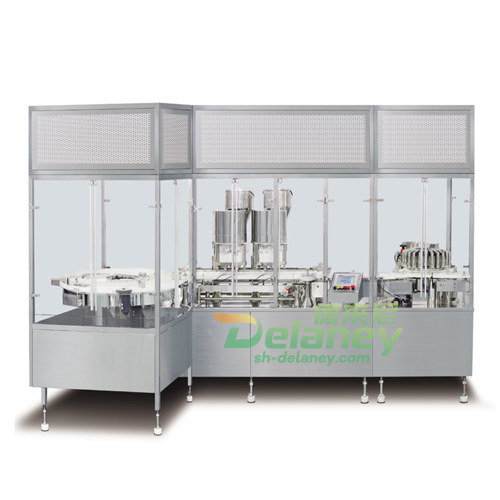

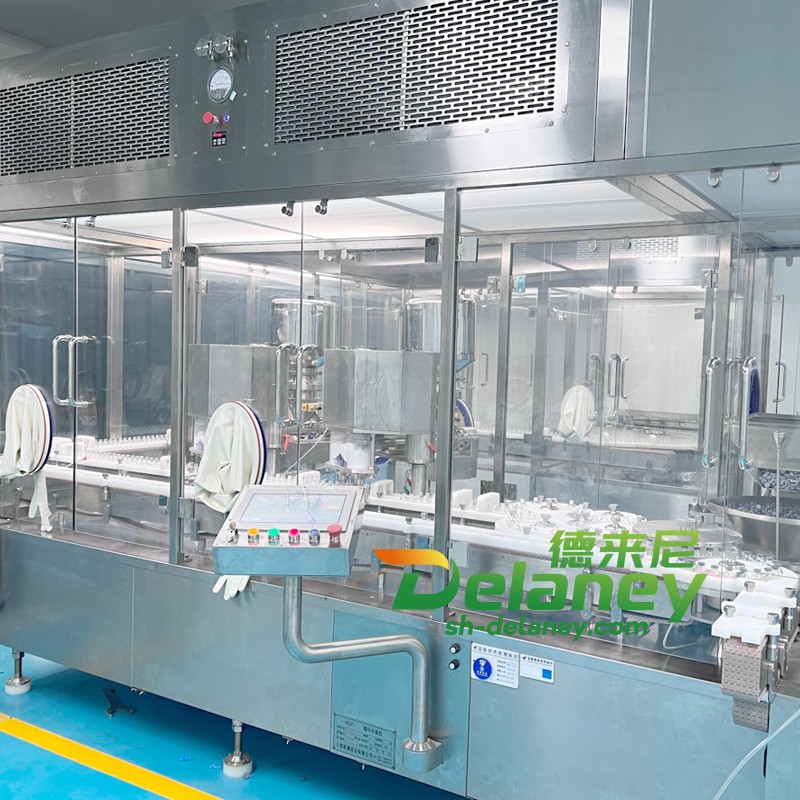

Power filling and capping machine

The machine is an intermittent linear motion filling device for handling of the aseptic injectable’s powder under cleaning environment with a “V” shape conveyor vial transferring from the infeeding to the outfeeding. This conveyor belt with no sizepart change for handling of vial sizes from 2ml to 30ml.

■ Intermittent linear motion and PLC controlled operation, 2-30ml vial sizes applicable

■ Fallen vial rejected, no vial no filling no stoppering combined with safety alarm functions

■ Machine main parts sourced from well-known manufacture with long life operation

■ Very high filling accuracy, Min. tolerance ≤ ±3%

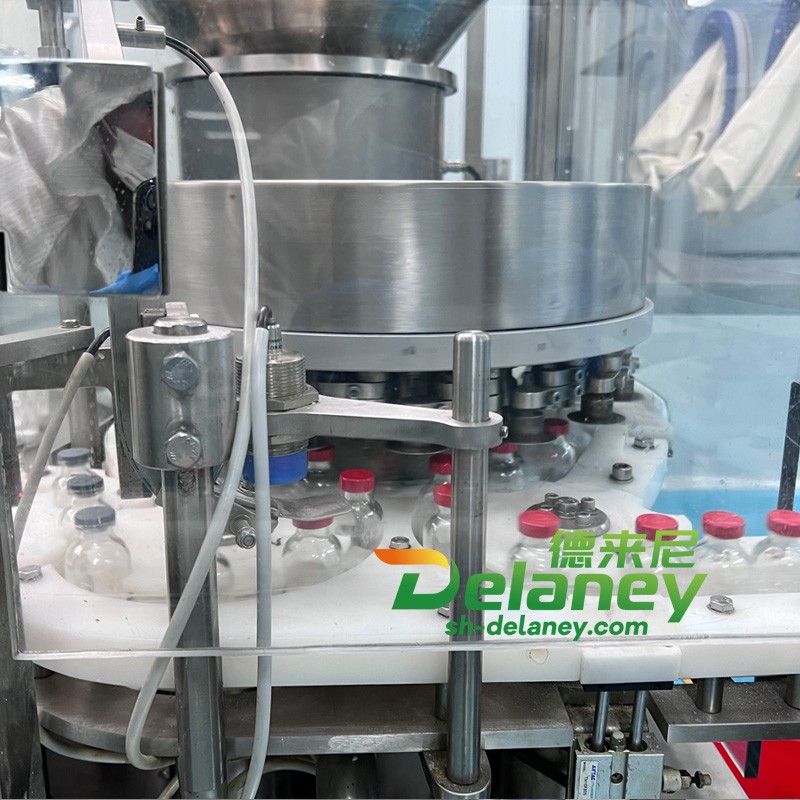

■ Continuous and slowly stoppering design ensure no stopper jumping during stoppering, Successful rate ≥99.8%

■ Easier operation via touch screen

■ Multi container sizes applicable, less changing sizeparts

■ Machine operation be possible in individual or synchronized

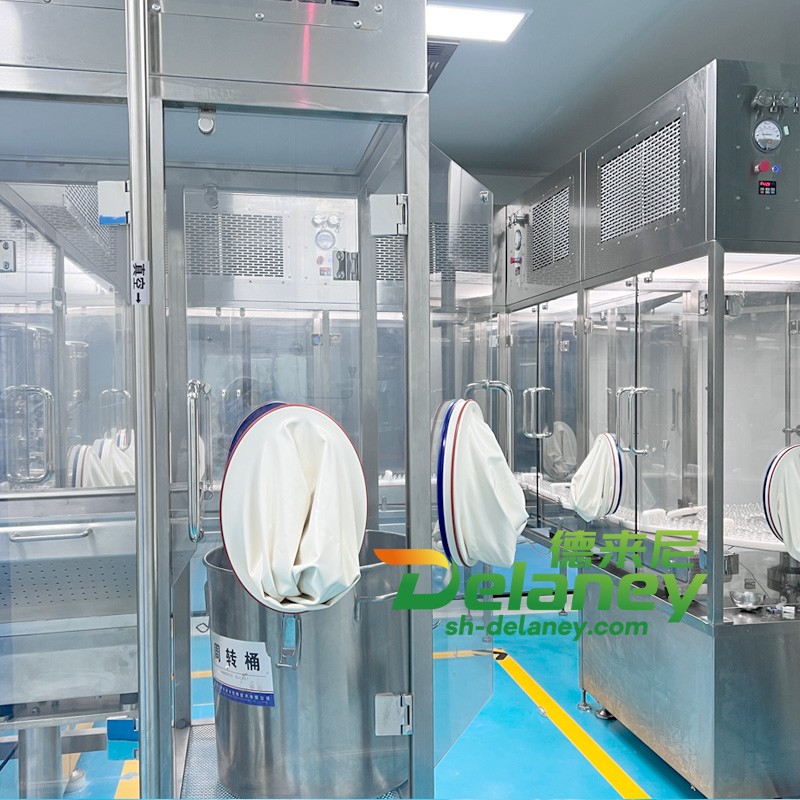

■ RABS or cRABS system integrated possible
