powder filling sealing washing and capping machine

■ Intermittent linear motion and PLC controlled operation, 2-30ml vial sizes
applicable
■ Fallen vial rejected, no vial no filling no stoppering combined with safety
alarm functions
■ Machine main parts sourced from well-known manufacture with long life
operation

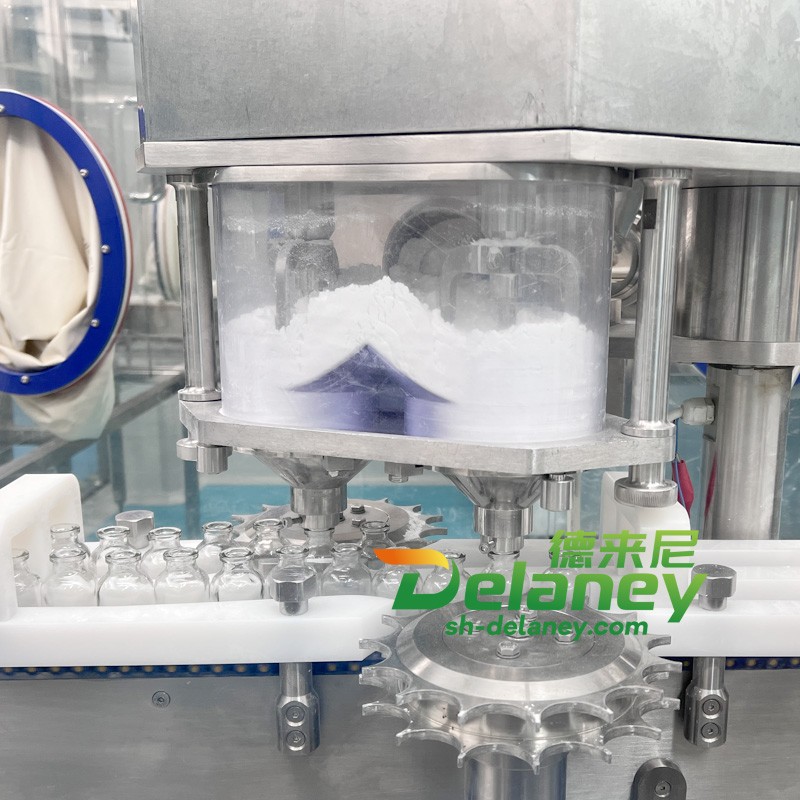

■ Very high filling accuracy, Min. tolerance ≤ ±3%

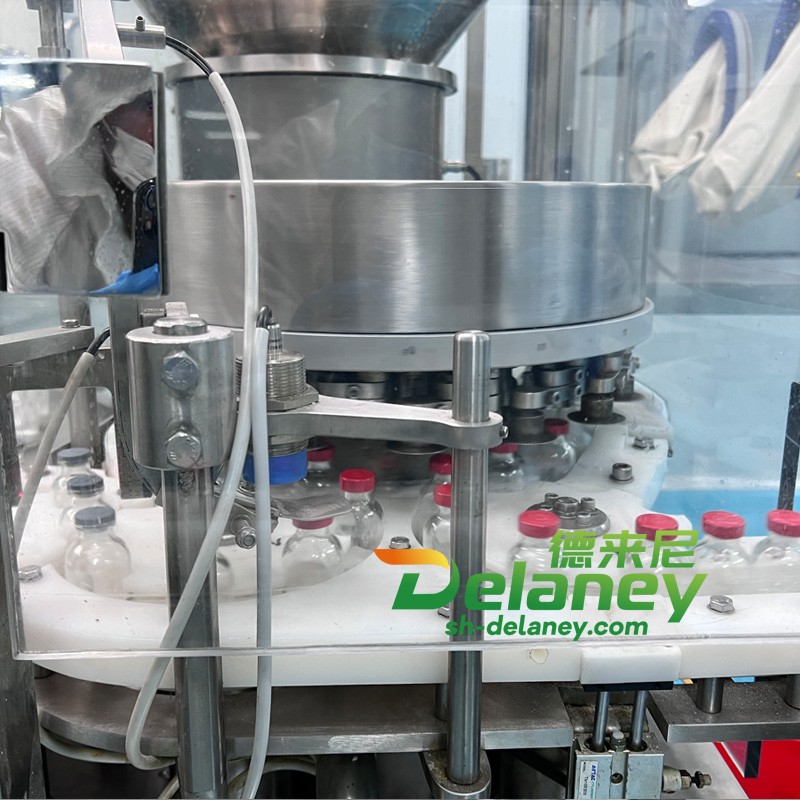

■ Continuous and slowly stoppering design ensure no stopper jumping during
stoppering, Successful rate ≥99.8%
■ Easier operation via touch screen
■ Multi container sizes applicable, less changing sizeparts
■ Machine operation be possible in individual or synchronized
■ RABS or cRABS system integrated possible

EMAIL

High filling accuracy EU GMP standard pharmaceutical power filling machine

The machine is an intermittent linear motion filling device for handling of the aseptic injectable’s powder under cleaning environment with a “V” shape conveyor vial transferring from the infeeding to the outfeeding. This conveyor belt with no sizepart change for handling of vial sizes from 2ml to 30ml.

power: 3P/380V/50HZ

electric load: 7KW

vacuum air discharge: 500L/min

noise: ≤ 65db

machine dimension:4220 2760 2000(+550mm LDF)

machine weight: approx 2000kg
