labeling machine for plastic bottles

labeling machine for plastic bottles

Product Characteristic

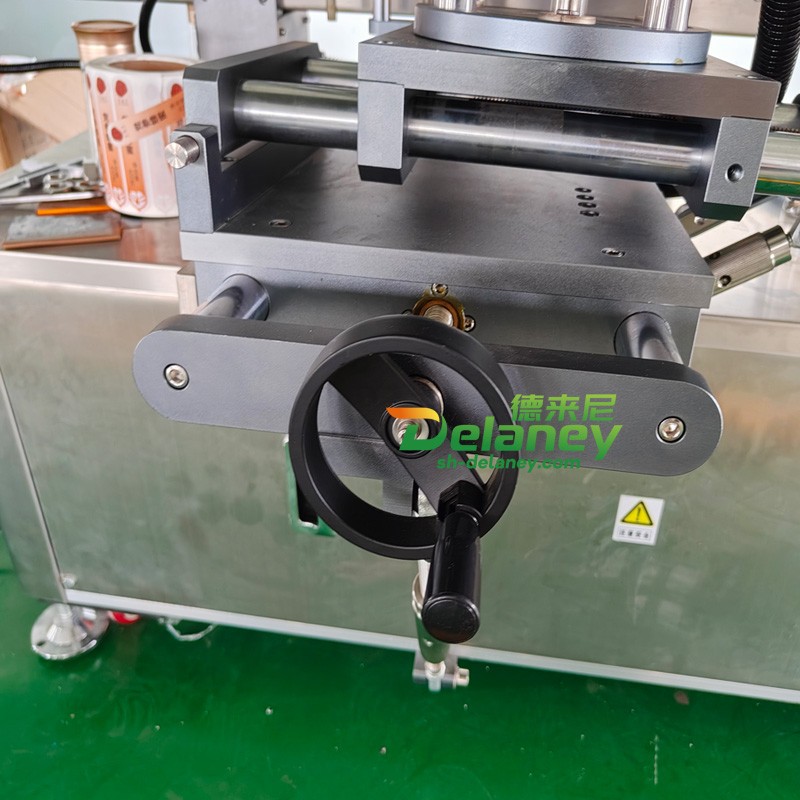

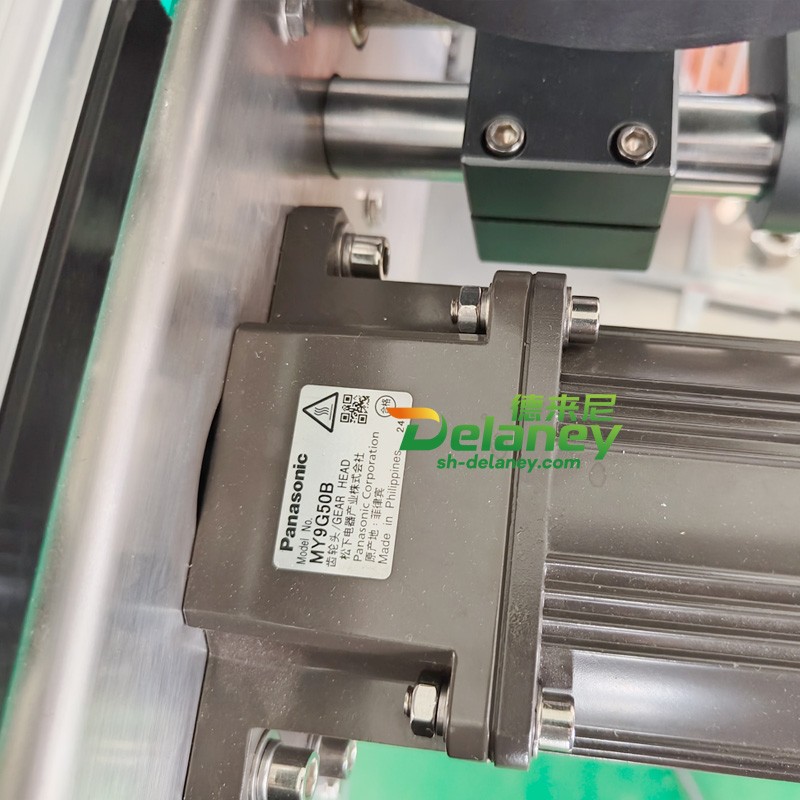

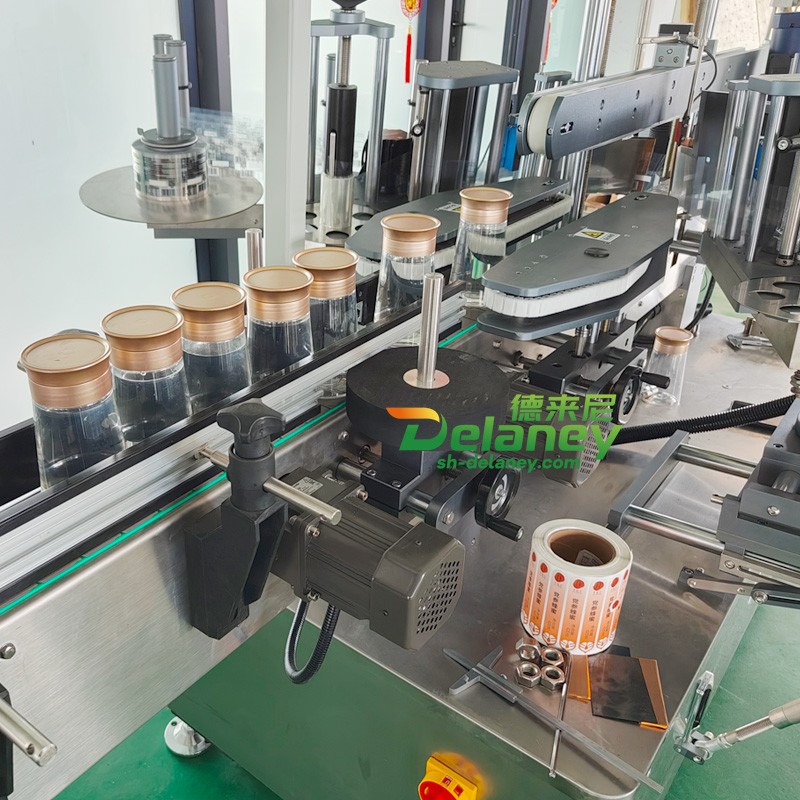

Automatic double sided labeling machine suitable for various products single sided and double sided labeling (round bottle, flat bottle, square bottle, abnormity bottle) equipped with automatic bottle splitting mechanism, before bottle guide automatic separates the distance, ensure subsequent bottle guide, transportation and stability of labeling. Adopts a specially designed plastic surgery mechanism to ensure positioning of the object being pasted accurate, intelligent control automatic photoelectric tracking, no object no labeling, no label automatic calibration and label automatic detection function, avoiding waste of label and missing labels,  use new type of header that can adjust eight-dimensional space, any product can be adjust within one minute, and main motor adopts famous brand motor, achieve true performance closed loop control, avoiding the” blind path” phenomenon of ordinary stepper technology, with high-precision subdivision and built-in absolute encoder, this is all designed to improve the accuracy of labeling, Chinese and English operation interface alarm Help display the system, and with a little training for operators, it is easy to use it

Technical parameters

Model :DL-666

Labeling speed: 80-150 pcs/minute

Labeling accuracy：±1mm plus or minus 1mm

Applicable product size range（mm）:diameter：φ10-100mm/ H 30-350mm

Applicable labeling range (mm):L（10-320mm）W（10-190mm）

labeling direction：left

Applicable paper roll inside diameter: φ76.2mm

Applicable paper roll outer diameter: Max φ330mm

Dimension：L 3200mm*W1650*H 1800MM

Power supply:220V 50HZ 1000W

N.W (KG) : about 550kg
