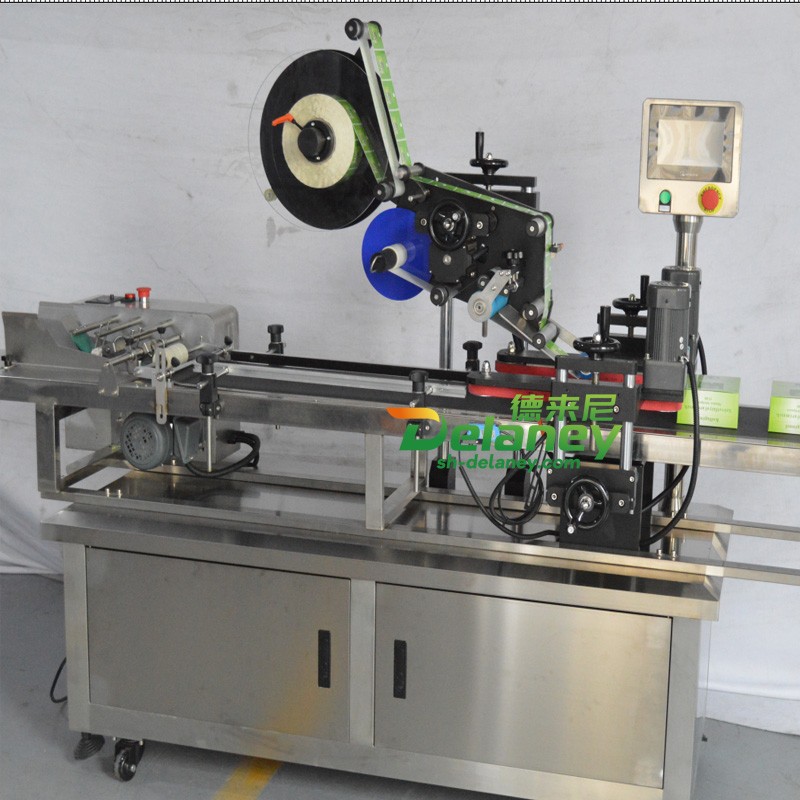

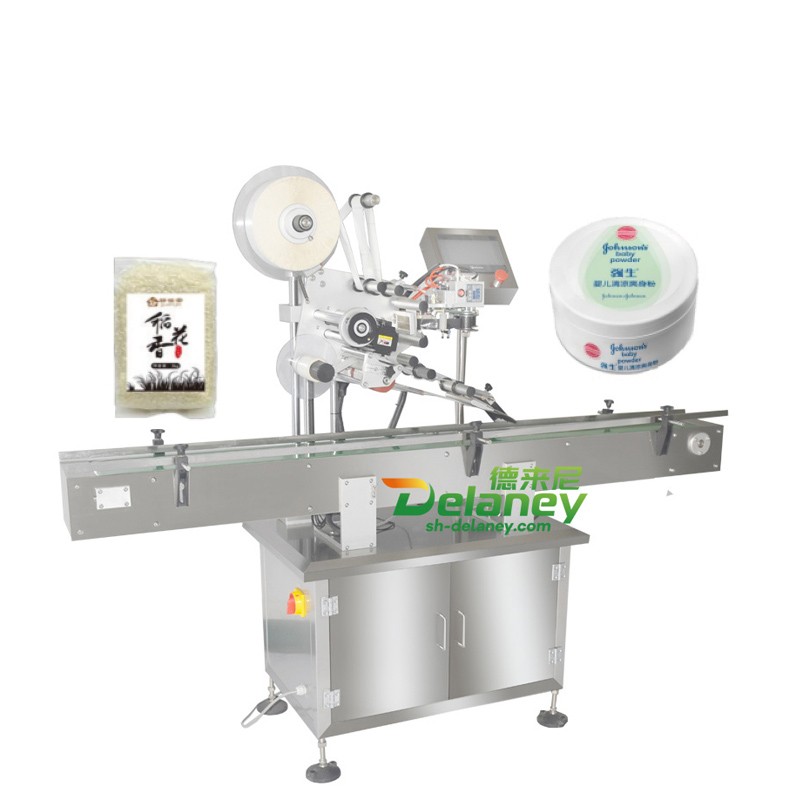

soft bag ampoule vial syrup labeling machine

soft bag ampoule vial syrup labeling machine

Product Introduction

1. The dual stage clutch design makes the label tightening tension more stable, making it easier to improve label accuracy

2. The controller adopts a Japan Mitsubishi PLC, equipped with a Taiwan weinveiw touch screen, Chinese and English operation interface

3. Belt conveyor line, suitable for labeling various flat products. It can be equipped with product clamping mechanisms or labeling mould to achieve higher precision labeling

Technical parameters

Model :DL -663

Labeling speed: 1-50 meters per minute

Labeling accuracy：±1mm plus or minus 1mm

Applicable product size range（mm）:L (40-400MM W(40-200MM)thickness2-150mm

Label range（mm）：L (15-350MM)W(15-145MM)

Labeling direction： left

Applicable paper roll inside diameter: φ76.2mm

Applicable paper roll outer diameter: Max φ330mm

Dimension：L2000mm*W800*H 1400MM

Power supply:220V 50HZ 1000W

N.W (KG) : about 200kg
